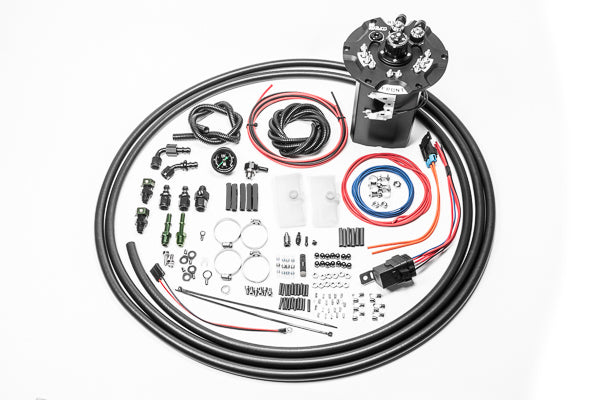

Radium Engineering FHST – Nissan 350Z / G35 / G37 / Q50 / Q60

The Radium Engineering FHST (Fuel Hanger Surge Tank) is the ultimate solution for fuel starvation issues in the Nissan Z33/V35 chassis and its Infiniti counterparts. Due to the OEM saddle-bag style fuel tank and limited baffling, these vehicles commonly experience fuel starvation under high-performance driving conditions such as track use. Radium's solution integrates a fully functional surge tank inside the OEM tank, eliminating the need for an external tank—ideal for the open cabin layout of the 350Z and G35.

The system supports 1 or 2 surge pumps, features an integrated adjustable 1:1 fuel pressure regulator, and is compatible with both brushed and brushless fuel pumps. The FHST installs without any grinding, bending, or cutting of the chassis and is fully compatible with alternative fuels, including E85.

How It Works:
The Radium FHST is mounted opposite the OEM fuel module inside the tank. The OEM module (fitted with a higher-flow pump) transfers fuel to the FHST, keeping its collector box full via:

• The upgraded OEM pump

• Return flow from the built-in regulator

• Integrated 355LPH one-way fill valves

The FHST then delivers consistent, regulated fuel to the engine via one or two aftermarket pumps. This setup ensures stable pressure and eliminates starvation—even under cornering, acceleration, and low fuel levels.

Integrated Fuel Pressure Regulator:

• Adjustable 1:1 boost-referenced regulator

• External screw adjustment with vacuum port

• 360° swivelling vacuum reference fitting with 4 interchangeable adapters:

  1. Barbed fitting (5mm)

  2. 3AN male

  3. Push-to-connect (1/4" OD tube)

  4. Vacuum plug for static systems

• Only one regulator should be used in the system

• Return fuel is directed back into the FHST to keep it full

Plumbing:

• Feed: 8AN ORB port with pre-installed 6AN male adapter

• Return: 6AN ORB port with 6AN male adapter

• Additional FPR port (plugged unless using P/N: 20-0806)

• Includes 6AN hoses to link the dual tank setup

• OEM feed line adapter included

• Optional upgrade: 8AN feed with P/N: 20-1000-0808 and custom line

• Inlet and outlet sock filters included

• Downstream filter recommended, but not required

Electrical:

• Stainless steel anti-rotation studs for high current

• Hermetically sealed, fuel-resistant connections

• Non-conductive anodised acorn nuts for safety

• ETFE-coated in-tank wiring

• Includes relay, fuse, wiring and hardware for 1 surge pump

• Additional wiring kits (P/N: 17-0031) required for second pump

Pump Compatibility:
Supports both brushed and brushless pumps. Ensure the correct version is selected for compatibility with your pump.

P/N: 20-1830

• Walbro GSS342

• AEM 50-1200 E85

P/N: 20-1832

• Walbro F90000267 / F90000274 / F90000285

• Deatschwerks DW440 (brushless)

Notes:

1. OEM venturi system must be retained

2. OEM module must be upgraded to a 340LPH+ pump

3. Do not modify OEM FPR or venturi

4. Some fuel level gauge inaccuracy may occur due to tank layout

Features:

• Drop-in installation with no permanent modifications

• Integrated 1:1 boost-referenced FPR

• Brushless fuel pump compatibility

• Fuel starvation protection with collector box

• High-current wiring and fuel-resistant hardware

• Gasoline, methanol, and ethanol compliant

• CNC-machined anodised aluminium construction

• Stainless steel and chemical-resistant components

• Anti-rotation electrical terminals

• Pressure gauge included

Compatibility:

• Nissan 350Z (Jan 2004 – Onward)

  • Requires 20-0596 for Jan 2002 – Jan 2004

• Nissan Fairlady Z (Jan 2004 – Onward)

  • Requires 20-0596 for Jan 2002 – Jan 2004

• Nissan Skyline Sedan (Jan 2001 – Dec 2008)
  ** Requires 20-0896 for Dec 2008 – Onward (excl. 2.0L Turbo)

• Infiniti G35 Sedan (Jan 2001 – Onward)

• Infiniti G37 Sedan (** Dec 2008 – Onward)

• Infiniti Q50 (** Nov 2013 – Onward, excl. 2.0L Turbo)

• Nissan Skyline Coupe (Mar 2003 – Dec 2008)

  • Requires 20-0596 for Jan 2001 – Mar 2003
    ** Requires 20-0896 for Dec 2008 – Onward

• Infiniti G35 Coupe (Mar 2003 – Onward)

  • Requires 20-0596 for Jan 2001 – Mar 2003

• Infiniti G37 Coupe (** Dec 2008 – Onward)

• Infiniti Q60 (** Nov 2013 – Onward, excl. 2.0L Turbo)
