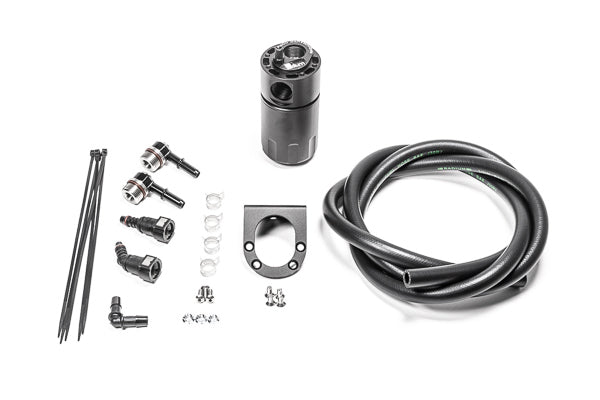

Radium Engineering Fluid Lock Catch Can Add-On CCV – 98–05 Mazda MX-5

This Radium Engineering CCV catch can is an add-on kit designed exclusively for use with the 20-1336-FL PCV Catch Can Kit. It mounts to the existing bracket and provides complete crankcase vapor management for 1998–2005 Mazda MX-5 models. Ideal for high-performance street or track applications.

Vehicle Compatibility:

• 1998–2005 Mazda MX-5 Miata (NB)

• Requires Part No. 20-1336-FL for installation

• Not compatible with 1989–1997 NA models due to space limitations

Overview:
The CCV catch can installs inline between the crankcase vent port and the intake pipe. Under high load and WOT (wide-open throttle) conditions, this line sees a high volume of blow-by gases. The catch can intercepts oil mist and vapors before they contaminate the intake tract, reducing sludge buildup and maintaining performance. During low load, the catch can experiences atmospheric pressure.

Key Features:

• Complements the PCV catch can for full system protection

• Closed-loop design – emissions and track legal

• Prevents oil accumulation in the intake system

• High-efficiency internal baffle system

• Lightweight anodized aluminum construction
