Radium Engineering Fluid Lock Catch Can Kit CCV – Nissan S13 SR20DET

$474.00
SKU: 20-0726-FL
Quantity:
Temporarily Out of Stock
Estimated shipping: 2-3 Days
Need it sooner? Contact us and we’ll see what we can do.

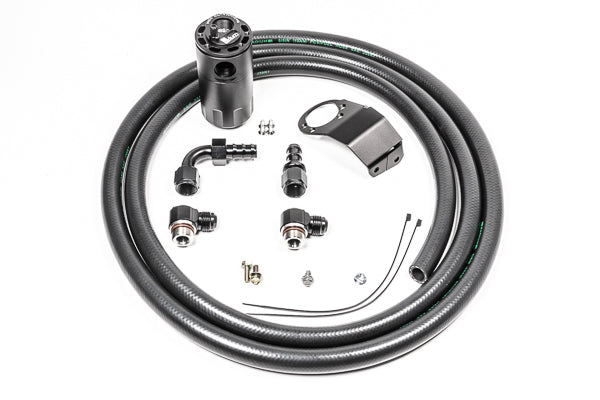

The Radium Engineering CCV catch can kit is designed for the Nissan S13 to eliminate oil and sludge accumulation in the intake system. It mounts to 2 holes on the LH side of the unibody near the firewall and is engineered to clear the windshield wiper motor (RHD) and master cylinders (LHD). This catch can system runs inline between the crankcase vent (CCV) port and the intake pipe.

At low loads, the system experiences atmospheric pressure, but under high load (WOT), it experiences high flow from the crankcase into the intake system. Without the CCV catch can, this would normally lead to oil and sludge buildup in the intake pipe, which could spread to the intercooler, lowering its thermal efficiency and decreasing performance. The CCV catch can effectively captures these contaminants and promotes clean, filtered air back into the intake.

Features:

  • CNC-machined aluminum construction

  • Baffled oil catch can for effective fluid separation

  • Nissan-specific mounting bracket for easy installation

  • Includes AN adapter fittings and hose ends for custom setup

  • Stainless steel hardware and Radium PCV hose for long-lasting durability

  • Designed to prevent oil and sludge accumulation in the intake system

  • Compatible with both RHD and LHD configurations

Notes:

  1. The CCV catch can kit does NOT address blow-by from the PCV valve side of the crankcase.

  2. The CCV catch can kit is compatible with and recommended to be used with the PCV catch can kit (see 20-0725).

  3. The kit is designed to connect the provided hose to the OEM valve cover barb. However, an add-on a la carte option for the SR20DET is available (sold separately). The parts required are:

    • 1x 20-0811 10AN Press-In Fitting

    • 1x 14-0215 10AN Hose End, 180deg

    • 1x 14-0211 10AN Hose End, Straight

Compatibility:

  • Nissan S13 240SX (All models/trims/RHD/LHD)

  • Nissan S13 Silvia (All models/trims/RHD/LHD, excluding CA18DET)

  • Nissan S13 180SX (All models/trims/RHD/LHD, excluding CA18DET)

  • Nissan S13 200SX (All models/trims/RHD/LHD, excluding CA18DET)
