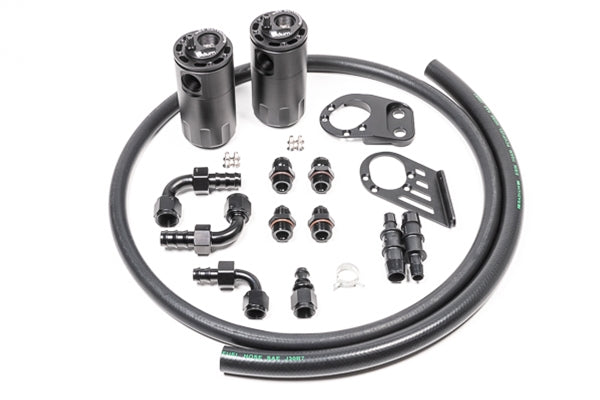

Radium Engineering Fluid Lock Dual Catch Can Kit – Fiesta ST 14+

Radium Engineering’s catch can kits are designed to reduce oil buildup in the intake system and improve engine reliability—especially under boost. These closed-loop systems are fully emissions and track legal, and install without any permanent modifications.

Vehicle Compatibility:

• 2014+ Ford Fiesta ST

Key Features:

• Large 10AN ORB inlet/outlet ports, 4AN ORB drain port

• Integrated 2-stage internal baffling and stainless steel media for air/oil separation

• O-ring sealed dipstick for easy inspection

• Fully sealed closed-loop system – does not vent to atmosphere (VTA)

• CNC-machined anodized oil catch can with vehicle-specific brackets

• Includes -AN adapter fittings, hose ends, and pre-cut PCV hose

• Installs using factory holes – no cutting or drilling required

• Fits under OEM engine cover

Kit Options:

20-0377-FL – PCV Catch Can Kit

• Mounts to RH motor mount

• Runs inline with the PCV valve

• Filters crankcase vapors during idle, cruise, and deceleration

• Prevents oil sludge from entering the intake manifold

20-0378 – Crankcase Catch Can Kit

• Mounts to ECU studs on LH side of engine bay

• Runs inline with the crankcase vent port

• Filters blow-by under high load/WOT

• Prevents oil from entering the turbo inlet, intercooler, and intake pipe

Dual Catch Can Kit (Recommended)

• Combines both PCV and Crankcase kits for complete coverage

• Maximum protection for the intake system in boosted applications
