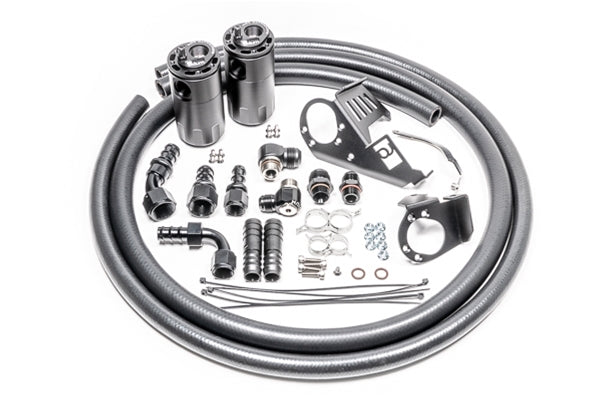

Radium Engineering Fluid Lock Dual Catch Can Kit – 2022+ Subaru WRX

This Radium Engineering dual catch can kit is a vehicle-specific solution for the 2022+ Subaru WRX VB chassis. It includes both PCV and CCV catch cans with Fluid Lock technology, laser-cut brackets, and all required hoses, fittings, and hardware for a complete, bolt-in installation. Designed for high performance and emissions compliance, this system promotes cleaner combustion and better long-term engine health.

Overview:
The PCV can mounts on the RH side and intercepts vapour from the crankcase before entering the intake manifold under vacuum. The CCV can mounts on the LH side and prevents oil vapours from entering the turbo inlet during high-load conditions. Together, they reduce carbon buildup and contamination of intake components. The Fluid Lock system ensures secure, leak-proof operation in any driving condition.

Key Features:

• Captures blow-by vapours from both PCV and CCV lines

• Maintains cleaner intake system and intercooler efficiency

• Fully sealed, track and emissions legal

• Internal baffling for effective oil separation

• Dipsticks for easy fluid inspection

• Anodised aluminium construction for corrosion resistance

• All necessary hoses, fittings, and stainless hardware included

Specifications:

• Capacity: 207 mL (each can)

• Height (without fittings): 127 mm

• Outside Diameter: 62 mm

Vehicle Compatibility:

• Subaru WRX (VB Chassis) – 2022+
