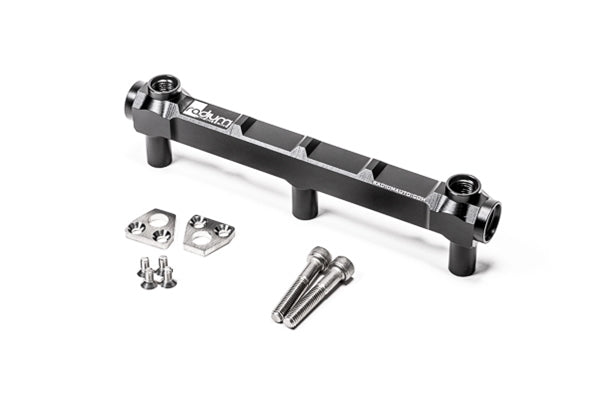

Radium Engineering Fuel Rail – Toyota G16E-GTS (GR Corolla / GR Yaris)

Designed specifically for the Toyota G16E-GTS engine found in the GR Yaris and GR Corolla, this Radium Engineering fuel rail is a high-performance solution for supporting increased fuel demands. With large 15.2mm (0.6") internal bores and four ORB-threaded ports, it offers excellent flow capacity and system flexibility for both OEM and upgraded setups.

This fuel rail features dual 8AN ORB end ports and dual 6AN ORB top ports, making it easy to integrate into both returnless and return-style fuel systems. The stainless steel mounting tabs provide robust and reliable mounting under high-load conditions, all while maintaining fitment beneath the factory engine cover.

Key Features:

• Large 15.2mm internal bore for maximum fuel flow

• Compatible with 11mm upper O-ring fuel injectors

• Dual 8AN ORB end ports and dual 6AN ORB top ports

• Anodised for corrosion and wear resistance

• Lightweight aluminium construction

• Fits under OEM engine cover

• Can be adapted to return-style fuel systems

Vehicle Compatibility:
2021+ Toyota GR Yaris
2023+ Toyota GR Corolla
